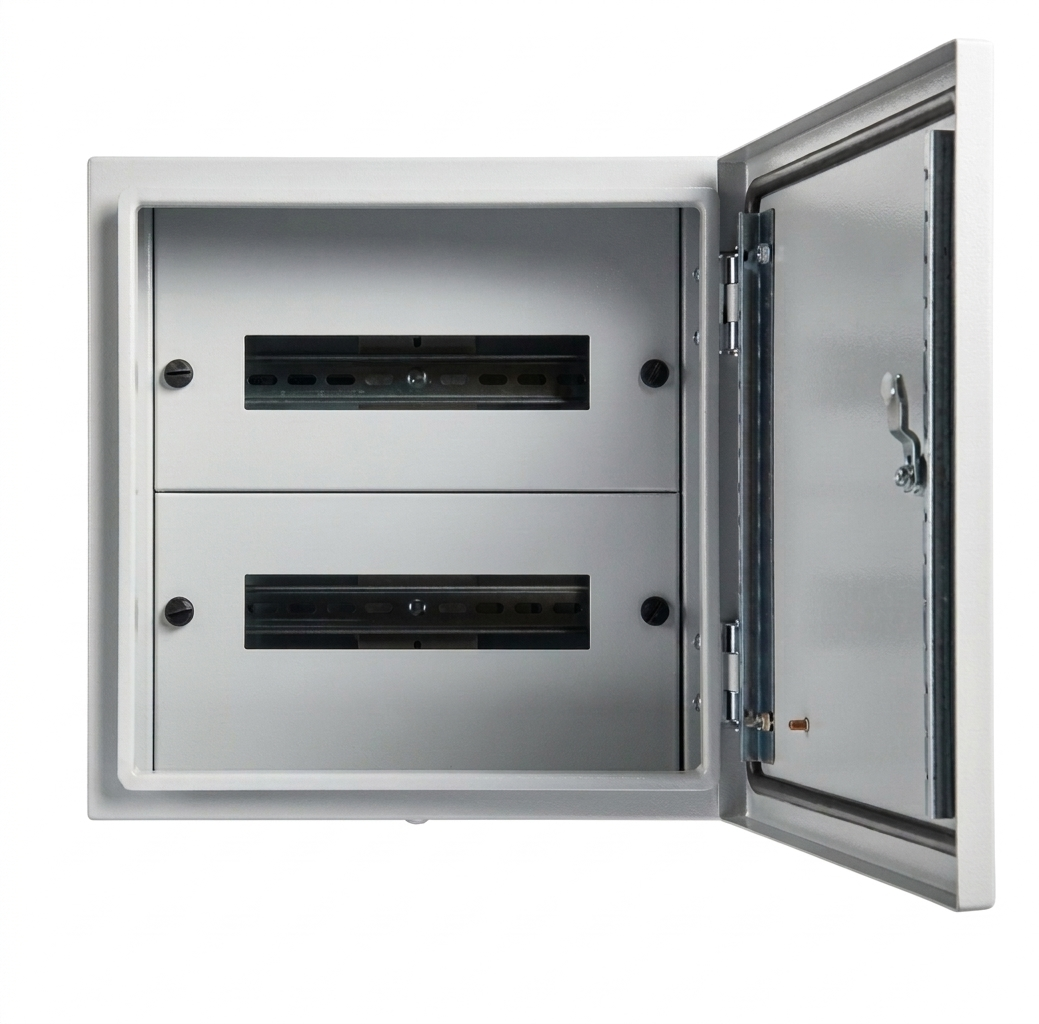

DIN Rail Kits

DIN Rail Kits are designed to be easily fitted to steel and stainless-steel electrical enclosures without drilling. The separate internal chassis frame can be fitted with components and wired prior to assembly into the enclosure. The removable escutcheon plates provide protection to the full perimeter of the enclosure.

Specifications

Chassis Material: Galv Sheet Steel
Escutcheon Plates: UL approved epoxy polyester powder coat, textured finish, 80–120 micron
Standard color RAL7035; other colors on request
No-drill fitment to steel and stainless-steel enclosures

Applications

Pre-wired chassis assembly
Modular DIN-rail component layouts

Product Certificates

UL
UL Certificate
Download
Testing
Certificate IEC 62262 (IK10)
Download
Testing
Certificate SASO GSO IEC 60529 (Row DB)
Download
Testing
Certificate SASO GSO IEC 60529 (Way DB)
Download
Testing
Certificate SASO GSO IEC 60529 (IP66)
Download
